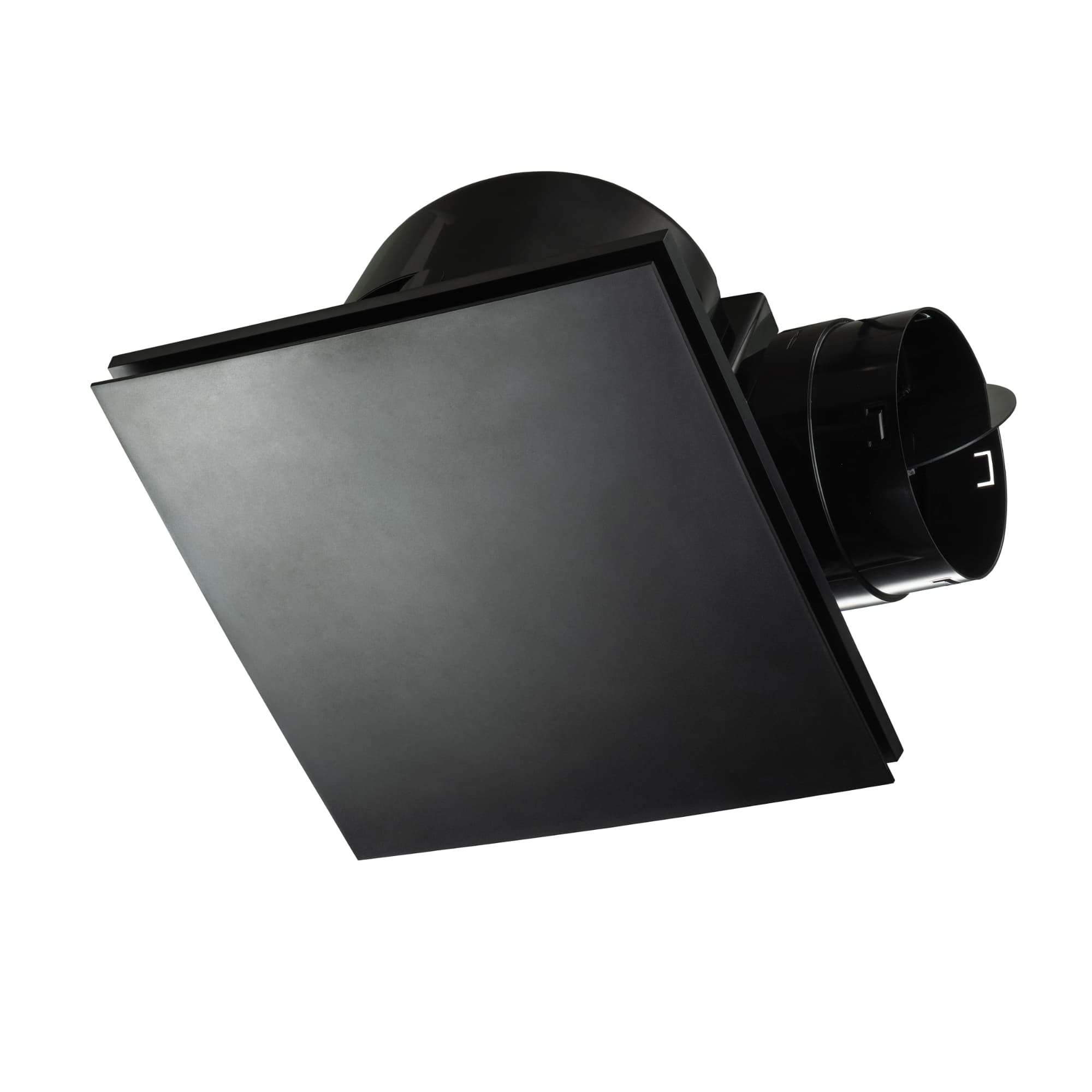

The Matte Black Square Hybrid Exhaust Fan is a powerful yet quiet exhaust fan with a sleek design. Suited for installation in bathrooms, and laundry rooms the Hybrid has a high extraction rate of 482 m3/hr at a whisper-silent volume.
With a ball bearing side-ducted motor built to last, and easy DIY installation, what’s not to love?
Available in White and Black, with both Square and Round fascias.
Key Features
- Back-draft shutter included
- Side ducted exhaust fan
- Lead and plug included for DIY Installation
Specifications
| Supplier | Fanco |
Model Number | ECVUHBM10 + EAVUHB10SQMBCOVER PACKAGE |
| Model Name | Hybrid |
Primary Colour | Matte Black |
| Room Type | Suitable for small bathrooms, ensuites and laundry rooms |
Exhaust Type | Ball Bearing |
| Power Source | Flex & Plug |
Decibel Rating | 36bB(A) |
| Air Extraction (m3/hr) | 482m³h |
Side Ducted | Yes |
| Wall Control Included | No |
Back Draft Stopper Included | Yes |
| Ducting Included | No |
Duct Outlet Diameter | 150mm |
| Facia Size | 330mm x 330mm |
Dimensions
| Duct Outlet Diameter | 150mm |
| Cutout Size | Ø 300mm |
| Facia Size | 330mm x 330mm |
| Depth | 198mm (Min. installation depth 220mm) |
