Product Description

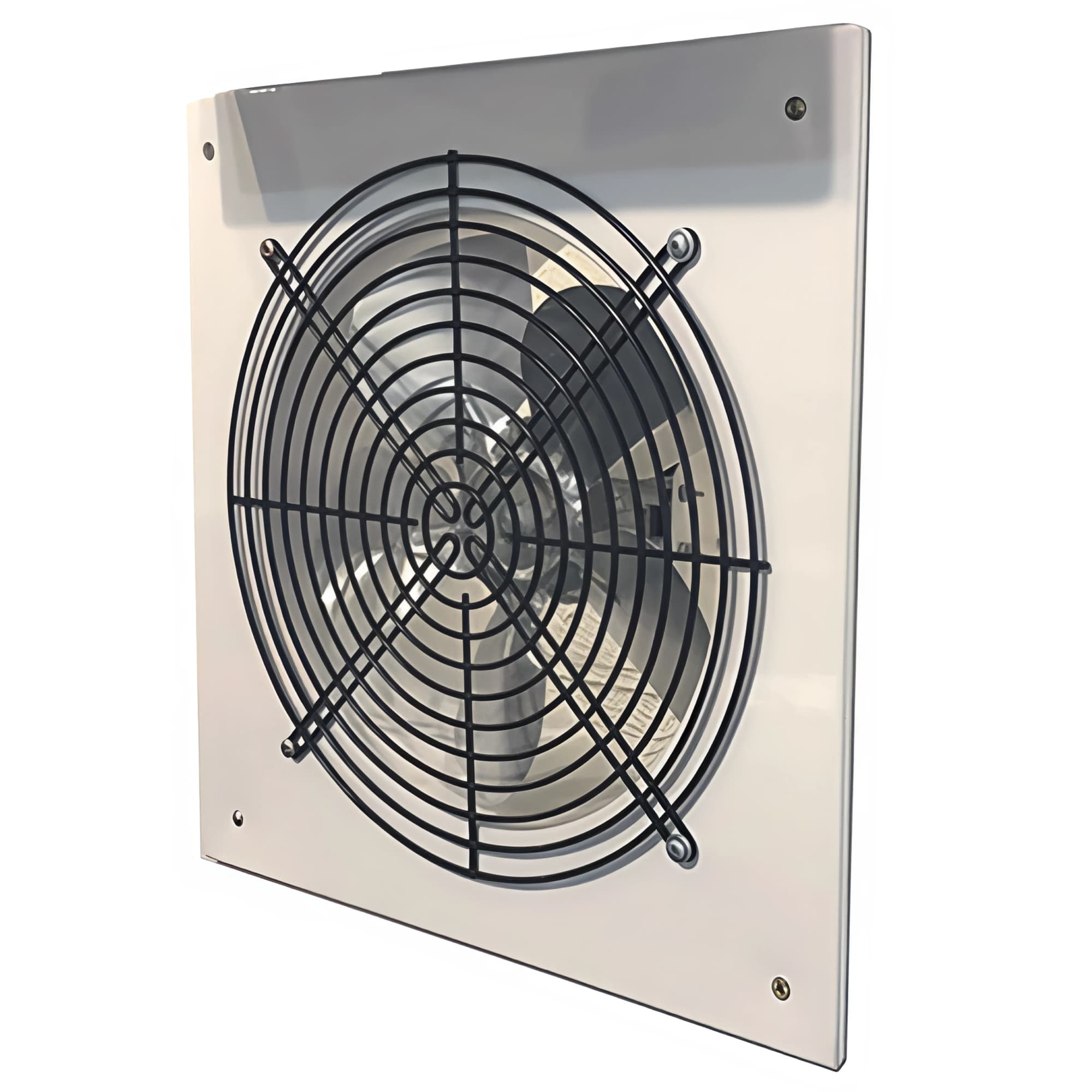

Maximise your indoor ventilation performance with the Fanco OV1 315mm Commercial-Grade Exhaust Fan — engineered for demanding high-usage applications. This powerful dual mount axial exhaust fan delivers exceptional 1700m³/hr airflow capacity at 110W, making it the ultimate solution for commercial facilities and intensive domestic environments.
Built with sealed ball-bearing motors rated for continuous operation, this robust metal construction ensures reliable performance under constant use. The versatile dual mounting (wall or ceiling) capability provides flexible installation options, while compatibility with ESEEAS speed controllers offers precise airflow management for optimal indoor ventilation control.
Key Features
- Massive 1700m³/hr extraction capacity at 110W delivers superior ventilation performance for large spaces and intensive environments
- Sealed ball-bearing motor — continuous duty rating ensures 24/7 operation reliability for demanding commercial/high-usage domestic applications
- Easy 315mm duct installation with versatile dual-mount capability ensures long-term reliability and safety
Specifications
| Supplier | Fanco |
Model Number | ECVUOV315 |
| Model Name | OV1 |
Primary Material | Metal |
| Primary Colour | White |
Room Type | Commercial area |
| Input Voltage |
240V AC |
Power Source | Hardwired |
| IP Rating | IP24 |
Decibel Rating | 54dB(A) |
| Wattage | 110W |
RPM High | 1300 RPM |
Performance Specifications
| Air Extraction (m3/hr) | 1700 m3/hr |
Dimensions
| Duct Outlet Diameter | 315mm |
| Cutout Size | ø 312mm (Wall/Ceiling) |
| Facia Size | 430mm |
| Depth | 170mm |
