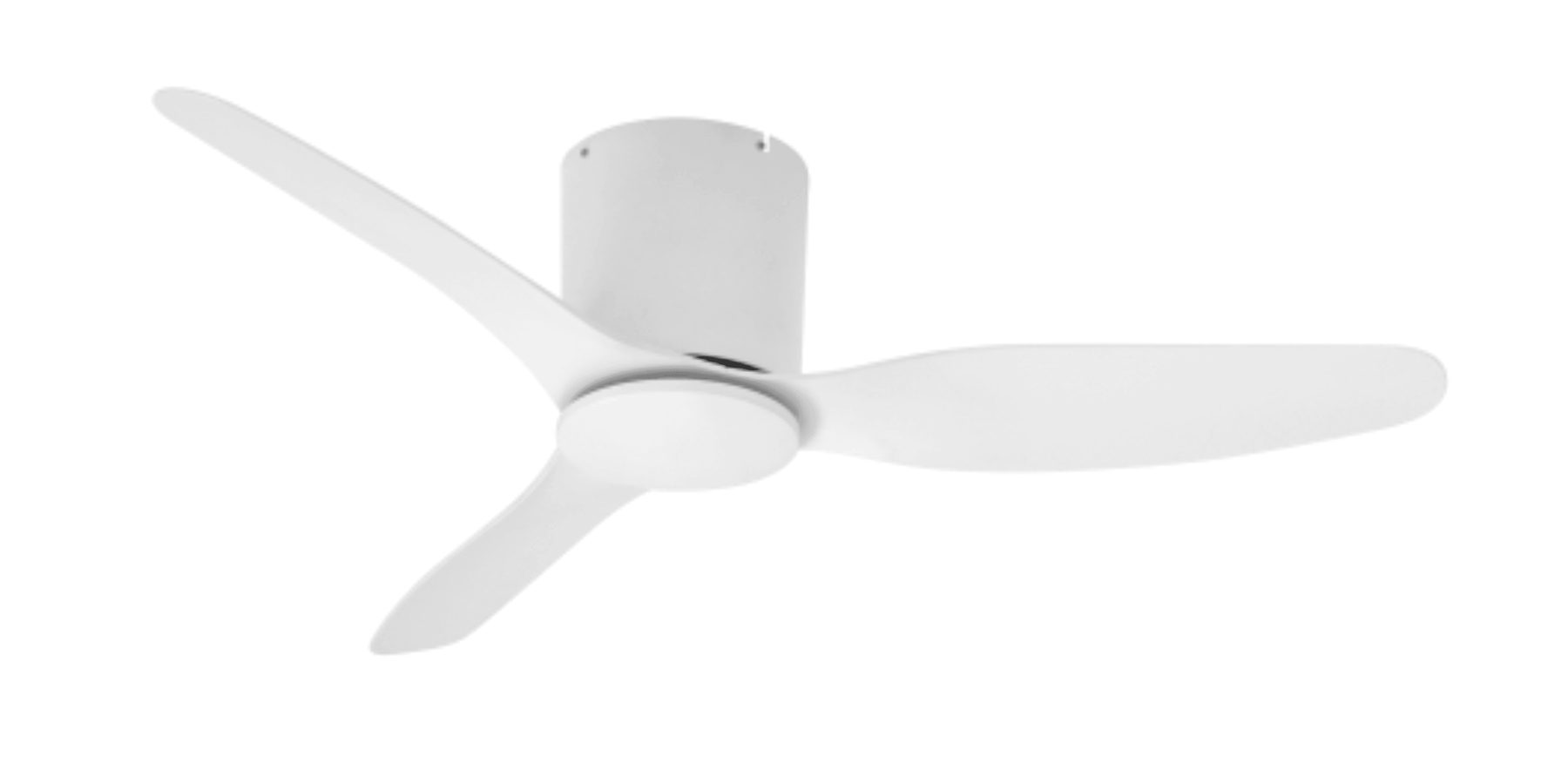

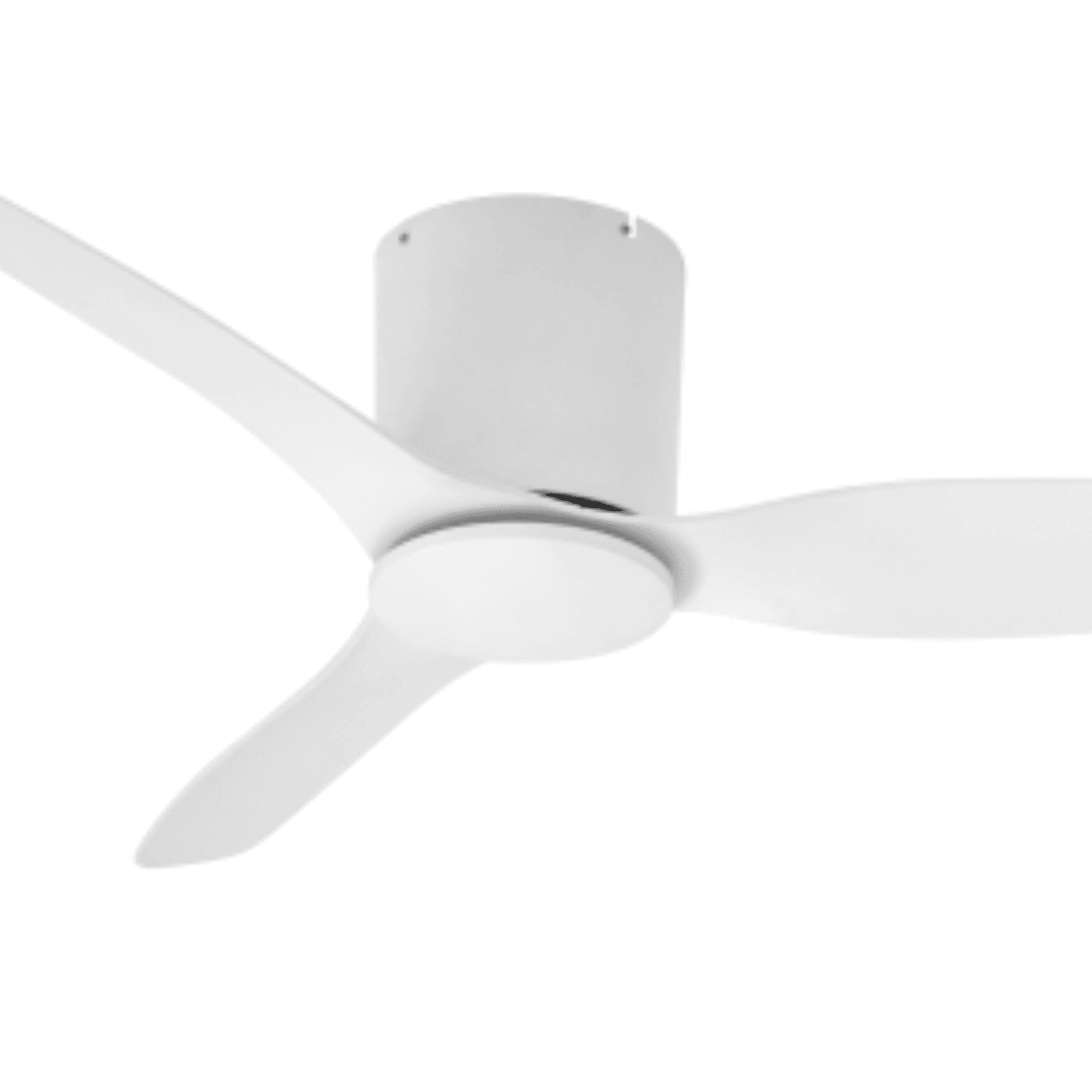

A stunning low profile fan with ABS plastic blades, the Fanco Studio is a highly efficient DC fan.
Only using 30W, the Studio has an output of 10,170 m3/hr of maximum airflow.

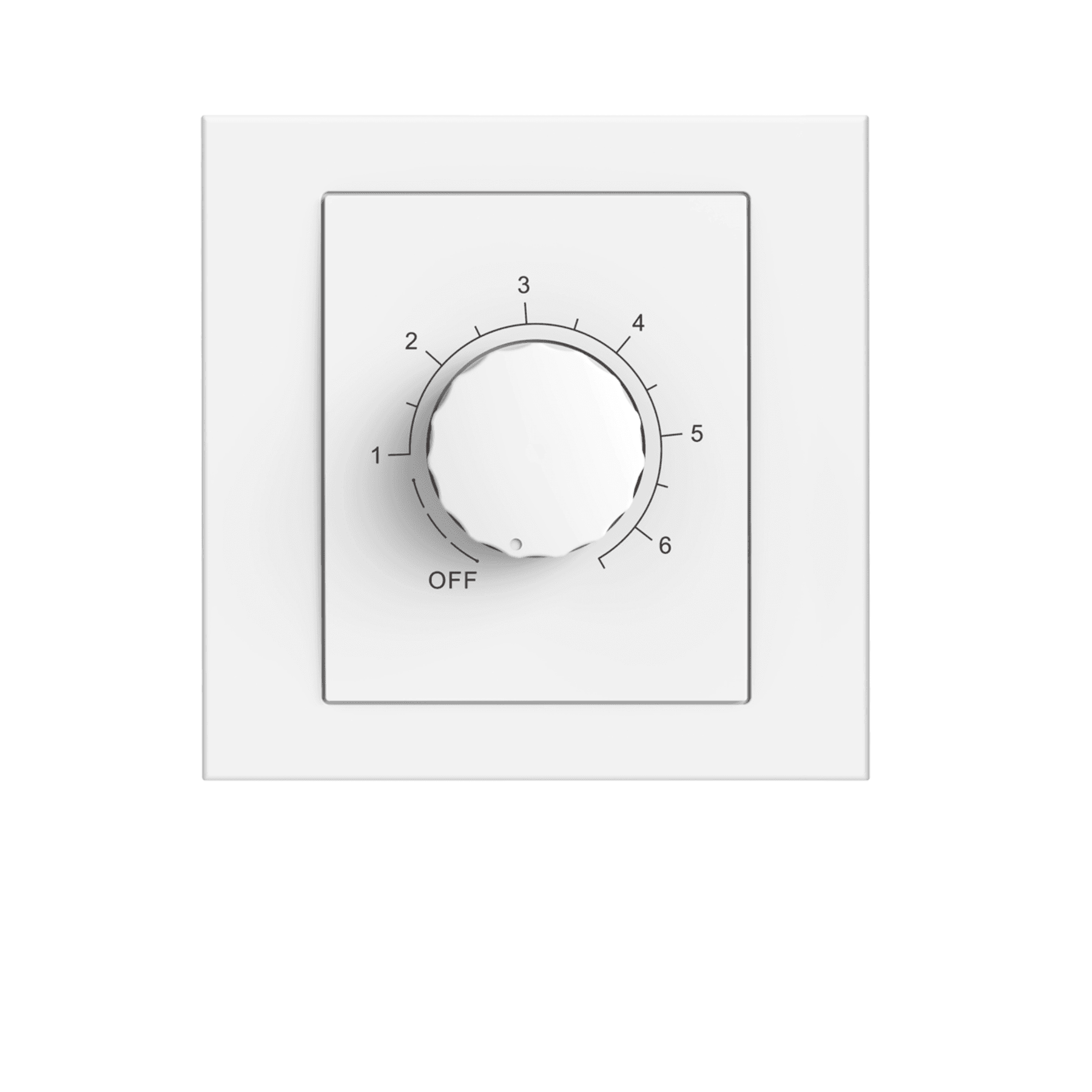

Included with the fan, is a 6 speed wall control.
Please note: the wall controller requires a specific and accurate hole size in the plasterboard/gyprock. Please view the Fanco recommended installation guide for more information.
Specifications
| Supplier | Fanco |
Model Number | CFFCST2WHW F9020/101A |
| Model Name | Studio |
Motor Type | |
| Installation Location | Indoor Only |
Input Voltage |
240V AC |
| Controller Type | Wall Control |
Remote Included | No |
| Light Kit Adaptable | No |
Motor Wattage (High Speed) | 30.1W |
| Summer/Winter Reverse | No |
Number of Blades | 3 |
| Blade Material | ABS Plastic |
Blade Pitch | High Curved |
| Sloped Ceiling Compatible | No |
Primary Colour | White |
| Motor Housing Material | TBA |
Extension Rod Adaptable | No |
| Style | Modern Contemporary |
Fan Size | 48" (1220mm) |
| Fan Warranty | 2 Year In home Warranty & 3 Year Motor Warranty |
Performance Specifications
| Power Low | 5W |
Power Med | 10.1W |
| Motor Wattage (High Speed) | 30.1W |
RPM Low | 60 |
| RPM Med | 116 |
RPM High | 200 |
| Airflow Low | 3,377 m3/hr |
Airflow Med | 5,699 m3/hr |
| Airflow High | 10,170 m3/hr |
Dimensions
| Blade Material | ABS Plastic |
| Blade Pitch | High Curved |
| Extension Rod Adaptable | No |
| Fan Size | 48" (1220mm) |
| Ceiling To Blades | 210mm |
| Ceiling To Bottom Of Fan | 240mm |
