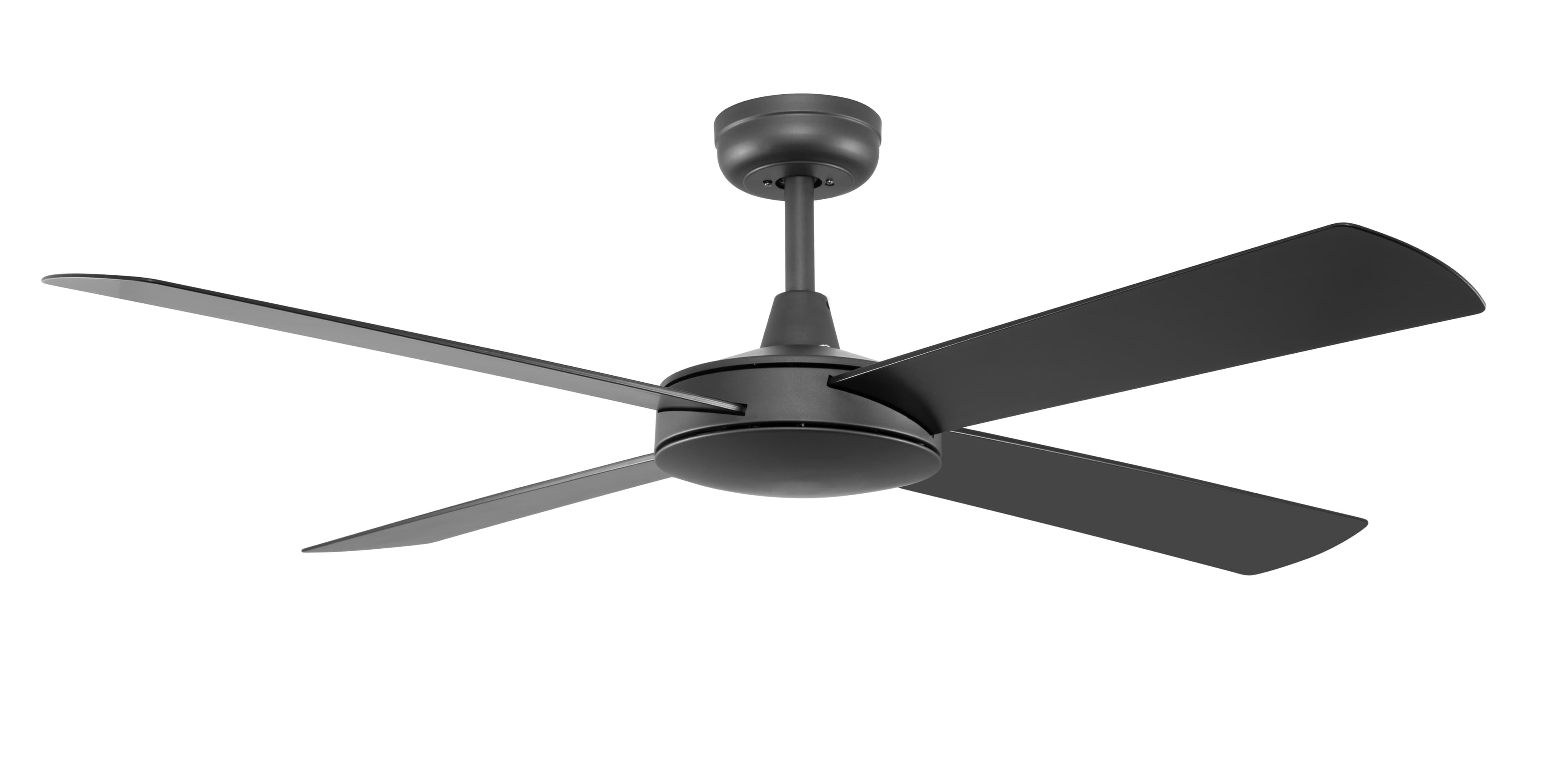

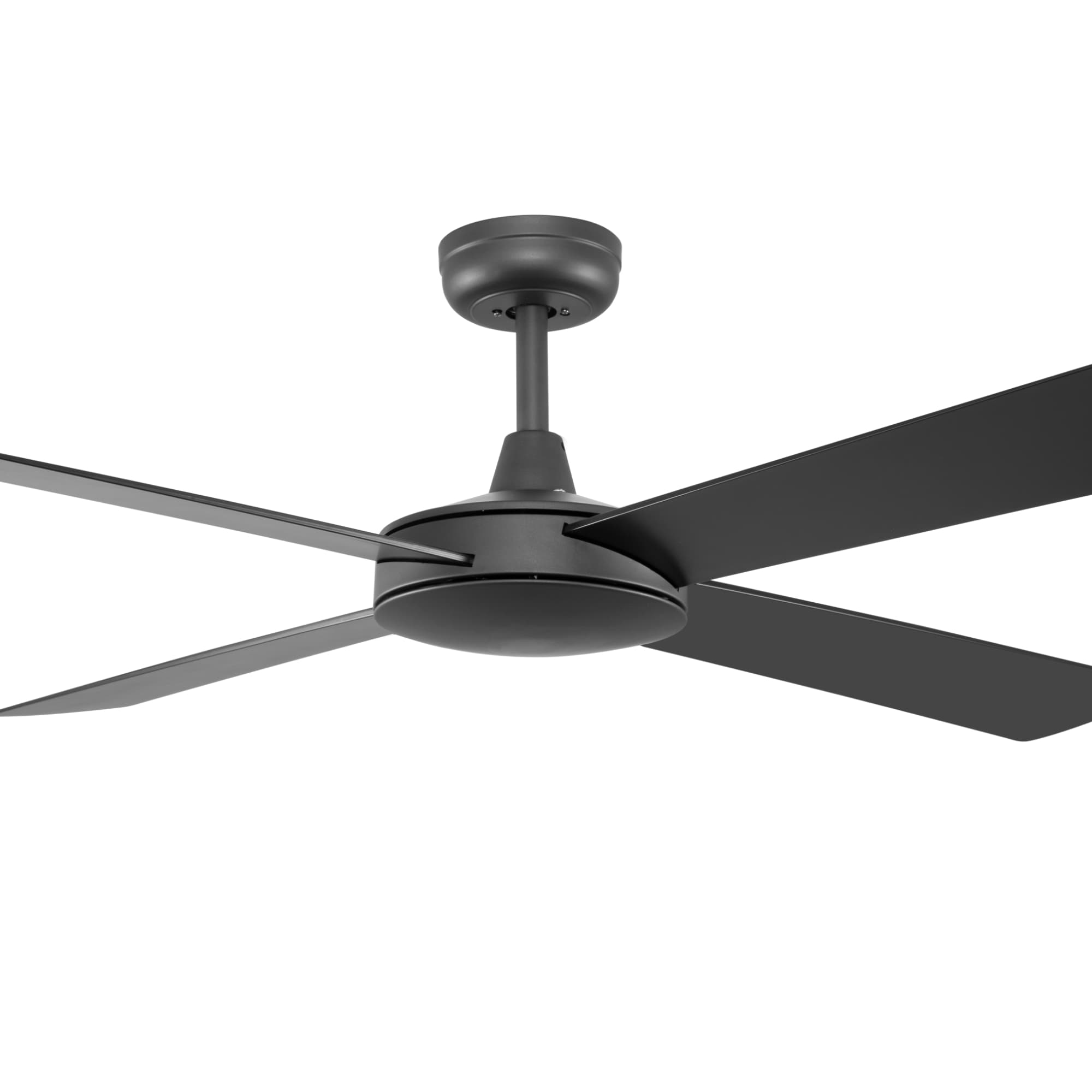

An upgrade from the original Eco Silent DC from Fanco, the Black Eco Silent Deluxe is an ideal cooling solution for bedrooms, living areas, and outdoor under covered areas such as alfrescos.
With a 52" (1300mm) blade span, the Eco Silent Deluxe has an efficient 35W DC Motor and ABS moulded plastic blades, ensuring whisper quiet operation with a max airflow of 11,060 m3/hr. The four ABS blades ensure that the fan is not only outdoor rated, but suitable for coastal environments also.

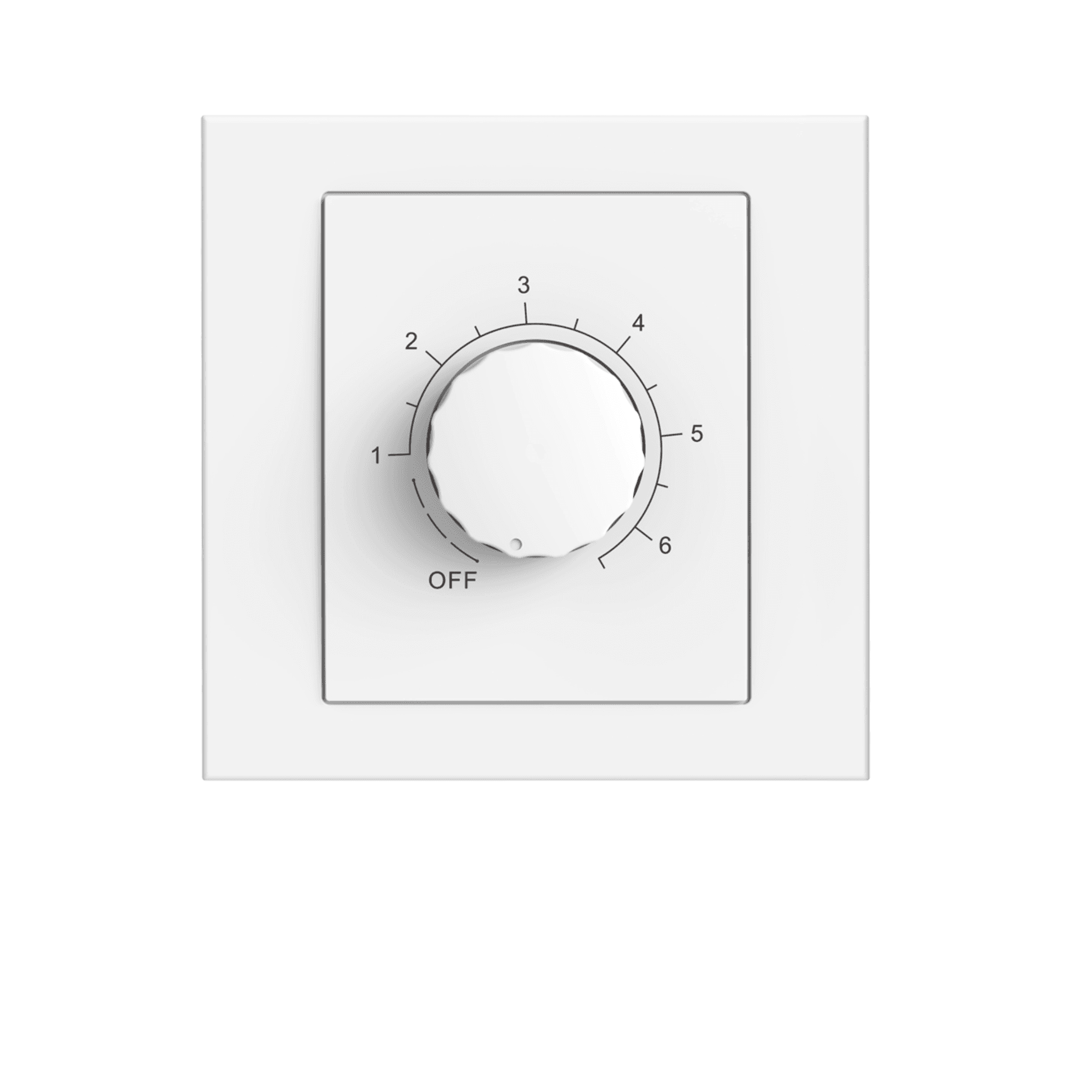

Included with the fan is a 6 speed hardwired DC wall control.
Please note: the wall controller requires a specific and accurate hole size in the plasterboard/gyprock. Please view the Fanco recommended installation guide for more information.
Key Features
- Efficient 35W DC motor
- Able to be installed in coastal environments
- Unique hardwired 6 speed DC wall control
Specifications
| Supplier | Fanco |
Model Number | CFFCESD3BLWABS F1210/202A |
| Model Name | Eco Silent Deluxe |
Motor Type | |
| Installation Location | Indoor & Outdoor (under cover) |
Input Voltage |
240V AC |
| Controller Type | Wall Control |
Remote Included | No |
| Light Kit Adaptable | No |
Motor Wattage (High Speed) | 35W |
| RPM High | 215 |
Summer/Winter Reverse | No |
| Number of Blades | 4 |
Blade Material | ABS Plastic |
| Blade Pitch | 13° |
Sloped Ceiling Compatible | Yes, up to 15° |
| Primary Colour | Black |
Motor Housing Material | TBA |
| Extension Rod Adaptable | Yes - Please See Accessories |
Style | Contemporary |
| Fan Size | 52" (1320mm) |
Fan Warranty | 2 Year In home Warranty & 3 Year Motor Warranty |
| Remote/Receiver Warranty | 12 Month In Home Warranty* |
Performance Specifications
| Power Low | 7W |
Power Med | 13.5W |
| Motor Wattage (High Speed) | 35W |
RPM Low | 90 |
| RPM Med | 140 |
RPM High | 215 |
| Airflow Low | 5,256 m3/hr |
Airflow Med | 7,038 m3/hr |
| Airflow High | 11,060 m3/hr |
Dimensions
| Blade Material | ABS Plastic |
| Blade Pitch | 13° |
| Extension Rod Adaptable | Yes - Please See Accessories |
| Fan Size | 52" (1320mm) |
| Ceiling To Blades | 270mm |
| Ceiling To Bottom Of Fan | 310mm |
